How to Beat Arc Blow in Stick Welding

Your stick welder isn't broken. But that wild, sputtering arc that's fighting you every inch? That's arc blow, and it's making your beads look like a dog's breakfast.

This isn't just about pretty welds. Arc blow means porosity, incomplete fusion, and crappy penetration. You'll end up with weak joints that'll fail when it counts. It's a common killer for beginners trying to lay down a solid 7018 bead.

What the Heck is Arc Blow?

Every time you strike an arc, the welding current creates a magnetic field around your electrode and the base metal. Think of it like a tiny, powerful magnet.

Normally, this field is balanced. But when you get to the end of a plate, a corner, or near a heavy magnetic jig, that field gets unbalanced. The arc, like a confused puppy, gets pushed or pulled by these distorted magnetic forces. It's literally fighting you, trying to stray from your intended path.

Spotting the Symptoms: Is Your Arc Acting Up?

First, you'll feel it. The arc will feel twitchy, hard to control, and might even extinguish itself for a split second.

Look for inconsistent spatter, often heavily concentrated on one side of the weld. You'll see undercut, porosity, and a bead that's just plain uneven. This usually pops up at the very start or end of a weld, or when you're working on something with odd shapes or heavy ground clamps. Try welding a long bead with a Lincoln AC/DC 225/125 on a heavy workbench and you'll see it near the edges.

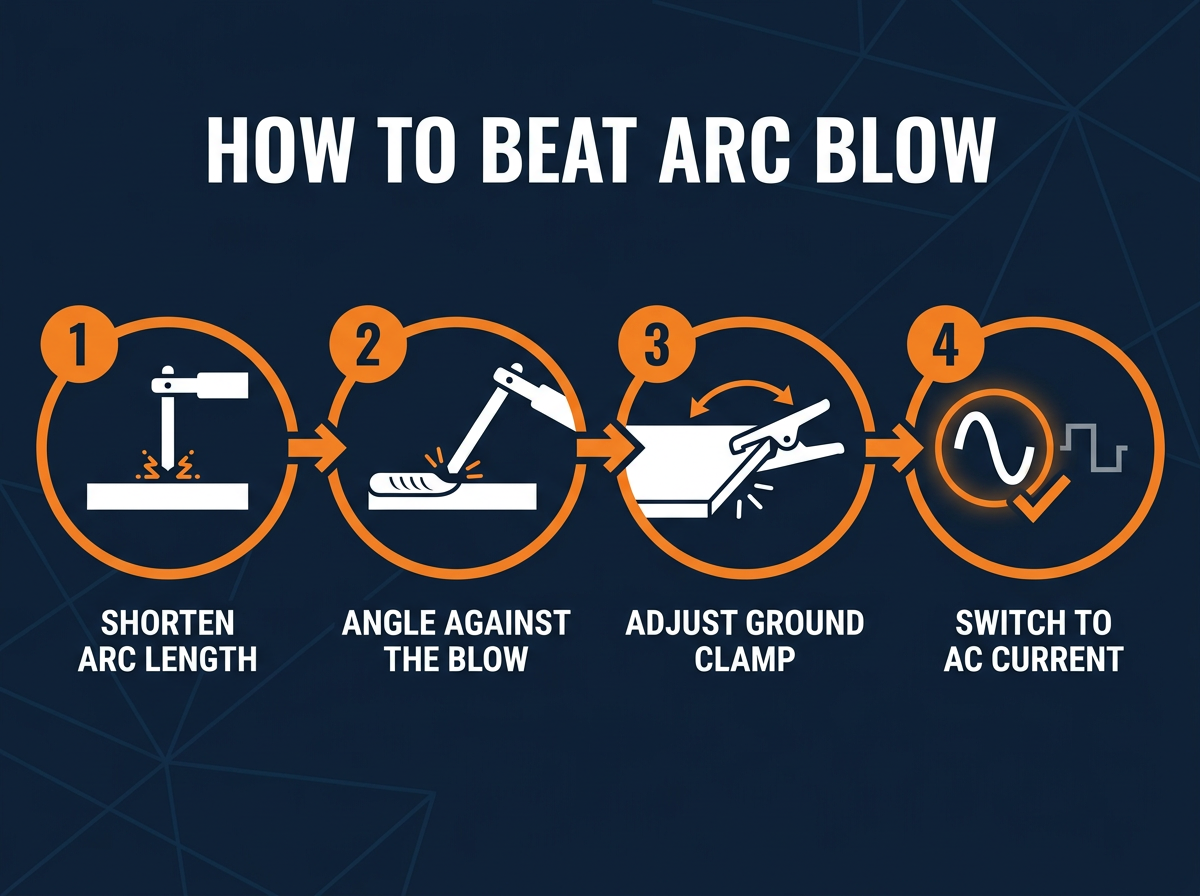

Taming the Wild Arc: Simple Fixes That Work

There's no single magic bullet for arc blow, but these tricks will help you get that arc under control.

Keep a Tight Arc Length

This is your first defense. A shorter arc means the magnetic field has less room to push and pull your molten puddle around. Stay tight, almost like you're dragging a 6013 rod. This gives you more control over the arc's path.

Angle Against the Blow

If the arc is consistently pushing forward, angle your electrode back a bit. If it's pulling to the side, angle into the pull. Think of it as counter-steering the arc – you're fighting the magnetic forces head-on.

Change Your Travel Direction

Sometimes, simply welding from one end of the plate to the other will solve it. Try welding towards your ground clamp, or even away from it. Experiment. If you're running a bead with a Miller Bobcat, try both directions and see which one feels more stable.

Add More Ground Clamps (or Move Them)

Dispersing the current path can help balance the magnetic field. Stick on an extra Hobart ground clamp or try moving your single clamp closer to the weld zone, or even further away. Sometimes that slight change makes all the difference, creating a more balanced magnetic field.

Use AC Current (If Your Machine Has It)

If you're using a machine like a Lincoln Electric AC/DC 225, switch to AC. Alternating current rapidly reverses polarity, which helps cancel out those steady magnetic fields that cause arc blow. It's often the quickest fix for severe arc blow.

Run-Off Tabs or Tack Welds

If you're consistently getting arc blow at the very start or end of a critical weld, use run-off tabs. These are sacrificial pieces of metal you start and finish your weld on, letting the arc blow happen there instead of on your actual workpiece. This ensures your main weld stays clean.

Common Rookie Mistakes with Arc Blow

1. Blaming the Machine: Your trusty Stickmate isn't broken. It's usually a technique or setup issue. Your equipment is probably fine.

2. Cranking Up Amperage: More heat doesn't fix a wandering arc; it just makes a bigger mess. You'll blow through metal faster and still have crap welds.

3. Ignoring the Ground Clamp: Placement is critical. A bad connection or poorly placed clamp can make arc blow worse, or even cause other welding problems.

4. Not Experimenting: There's no single magic bullet. You have to try a few of these tricks to see what works for your specific setup and joint.

Don't let arc blow defeat you. It's a common frustration, but it's totally manageable. Understand what's happening, apply these simple tricks, and you'll be laying down consistent, strong stick beads you're proud of. Keep that arc tight, keep experimenting, and you'll master it.
